Modernizing Authentication in SharePoint Online

Starting a year or two ago, Microsoft announced it would stop supporting and/or blocking access to Azure Access Control Services (ACS) and the SharePoint Add-In model. This is important because ACS has been used for many years to grant app/script API access to a SharePoint site(s), and you likely have many sites where this has been used. Moving forward, Azure Access Control (AAC) will be used in place of ACS.

Historically, you would start the permissions journey by generating the client ID and secret at this endpoint:
_layouts/15/AppRegNew.aspx
From there, you grant the newly created identity access to a tenant, sites, lists, libraries, or a combination.
_layouts/15/appinv.aspx
The other option was to create an Azure App Registration and then grant it access to the target objects. When working with SharePoint Online and AppRegNew.aspx, the App Registration is generated automatically. Depending on what is/is not configured, this can be an issue and set off alarms in Azure.

With that out of the way, how do you wire-up a new connection to SharePoint Online, allowing PowerShell, Python, script, or app access to the SharePoint API or the Microsoft Graph API?

Overview of what I’m doing:
Create a self-signed cert
Add the cert to your personal cert store and upload it to Azure, creating an App Registration
Adjust permissions as needed
Grant the App Registration access to a specific SharePoint site
Use the newly created credentials to access the SharePoint site

#create cert with a password
New-PnPAzureCertificate `
    -CommonName "Demo_SP_Azure_2024" `
    -OutPfx c:\code\Demo_SP_Azure_2024.pfx `
    -OutCert c:\code\Demo_SP_Azure_2024.cer `
    -CertificatePassword (ConvertTo-SecureString -String "Taco@Good" -AsPlainText -Force) `
    -ValidYears 1

#import the cert. for this to work, run as Admin.
Import-PfxCertificate `
    -Exportable `
    -CertStoreLocation Cert:\LocalMachine\My `
    -FilePath c:\code\Demo_SP_Azure_2024.pfx `
    -Password (ConvertTo-SecureString -String "Taco@Good" -AsPlainText -Force)

I highly suggest not skipping the ‘-interactive’ part for the next command. It will open a browser window where you must authenticate with an account with adequate permissions to create a new App Registration in Azure. The script’s most important thing to note is SharePointApplicationPermissions Site.Selected. Why is this important? This is extremely useful if you want to limit permissions to a single SharePoint site and not every site in the tenant.

Register-PnPAzureADApp `
   -ApplicationName Demo_SP_Azure_2024 `
   -Tenant tacoranch.onmicrosoft.com `
   -Store CurrentUser `
   -SharePointApplicationPermissions "Sites.Selected" `
   -Interactive

After that runs, the output will include the Client ID and Certificate Thumprint. Take note of it, or you can open Azure, navigate to App Registrations, and select all applications. In the left nav, click Certificates & secrets, where you’ll find the thumbprint; again, in the left nav, click Overview, and you’ll see the Application ID, aka Client ID.

In the next two commands, you will connect to the SharePoint Admin site interactive, then grant the newly created App Registration write access to the target SharePoint site.

Connect-PnPOnline -Url "https://tacoranch-admin.sharepoint.com" `
    -Interactive

#grant the App Reg write access to the site
Grant-PnPAzureADAppSitePermission `
    -AppId 'a95ddafe-6eca-488a-b26a-dc62a64d9105' `
    -DisplayName 'Demo_SP_Azure_2024' `
    -Site 'https://tacoranch.sharepoint.com/sites/cert-demo' `
    -Permissions Write


Now that the App Registration can access the SharePoint site, how do you connect to it using the certificate and thumbprint?

Connect-PnPOnline `
    -Tenant "tacoranch.onmicrosoft.com" `
    -Url "https://tacoranch.sharepoint.com/sites/cert-demo" `
    -ClientId "a95ddafe-6eca-488a-b26a-dc62a64d9105" `
    -Thumbprint "5C5891197B54B9535D171D6D9DD7D6D351039C8E"

Get-PnPList | Select-Object Title

Using the above commands, you can create a cert, register it in Azure, and grant access to a single SharePoint site.

I’ve included a copy of the full script here:
https://www.sharepointed.com/wp-content/uploads/2024/03/Azure-App-Reg-Cert-Demo.txt

Error(s) and fixes:
Error:
Grant-PnPAzureADAppSitePermission: {“error”:{“code”:”accessDenied”,”message”:”Access denied”,”innerError”:{“date”:”2024-03-21T16:29:47″,”request-id”:””,”client-request-id”:””}}}
Fix:
Ensure the account running this command Grant-PnPAzureADAppSitePermission , has access to the target SharePoint site.

Power Pages Update SSL Cert and Website Bindings and Website Authentication Key

If you are here, you’re likely dealing with a Power Pages cert that’s about to expire or already has. Updating the cert is fairly straightforward, but the kicker is ensuring the user making the update has the correct permissions. When updating the cert, also check that the Website authentication key is still valid. Scroll to the bottom to see more about the auth key.

Permissions that are needed to update the cert and get the authentication key updated:
Owner on the App Registration associated with the Portal.
o365: Power Platform Admin, and Global Admin

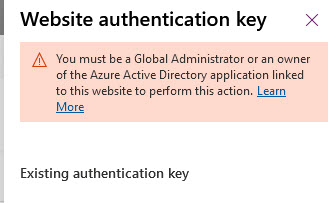

As noted in the warning below, it states you can be a Global Admin or App Registration owner. Unless your sys admin is doing the update or if you are a sys admin, gaining access to the App Registration might be the easiest way to update the cert and re-bind the site.

Here are the steps I took to update my portals’ cert:
Uploaded the new cert under Manage custom certificates (note cert ID)

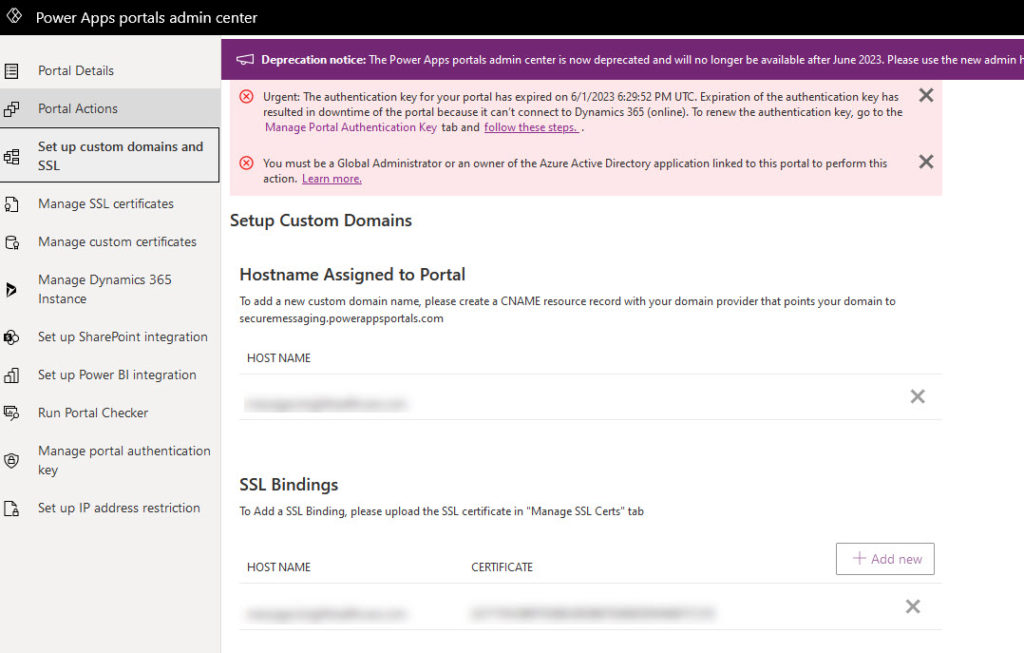

Navigate to the Set up custom domains and SSL page
Delete expired cert
In the SSL Bindings section, click +Add new and associate your host with the newly uploaded cert.

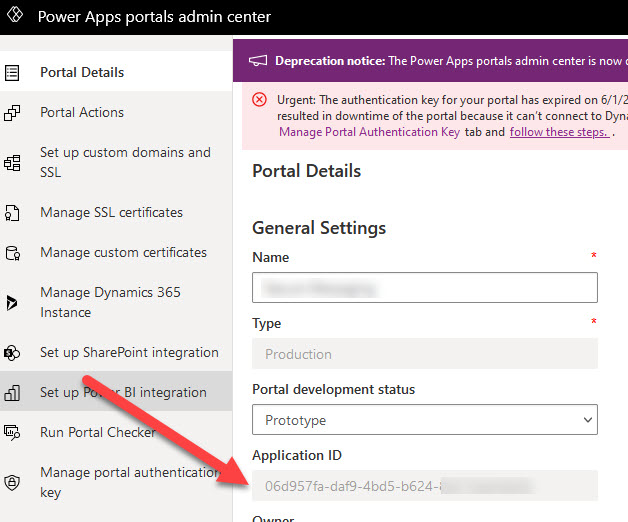

Here you can grab the Application ID and locate the associated App Registration.

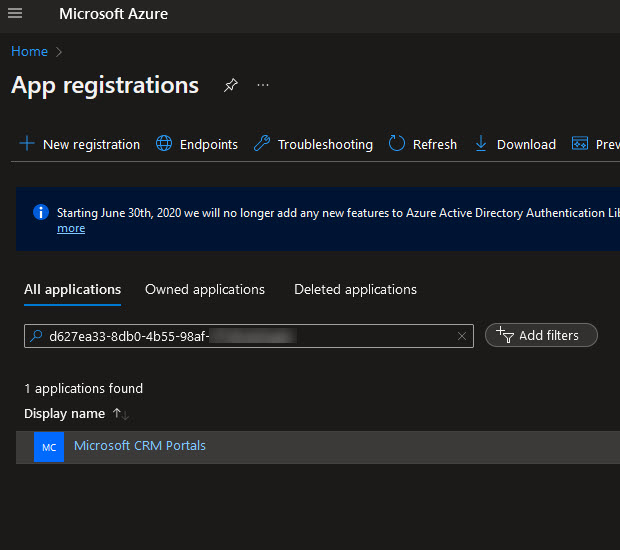

Open the Azure portal, search for App Registrations, then search by the App ID. Once you have the App Reg., make sure you are an Owner. In the left nav of the app, click Owners, then add yourself or have an admin add you.

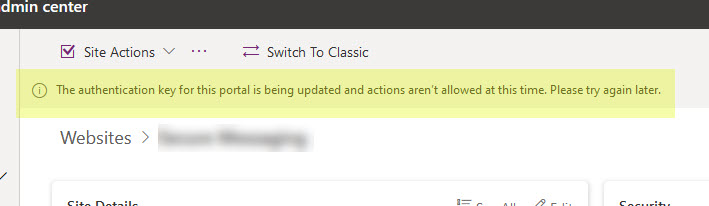

After that is updated, navigate back to the Power Pages admin portal and update the Authentication key. NOTE: the site will be offline for a few minutes.

Here are some helpful links related to this topic:
https://learn.microsoft.com/en-us/power-pages/admin/admin-roles
https://learn.microsoft.com/en-us/power-pages/admin/manage-auth-key


How do you find ALL the Flows that reference a SharePoint site or list?

I asked this question when I first started down the path of learning about Flow:
How do you find all the Flows running on or referencing a SharePoint list?

UPDATE / EDIT – READ THIS Part
Before you start on this, please ensure that your account or the account you are using to run the script has sufficient permissions to the target environment(s).

$oneFlow = Get-AdminFlow -FlowName "00000-ae95-4cab-96d8-0000000" -EnvironmentName "222222-4943-4068-8a2d-11111111"

$refResources = $oneFlow.Internal.properties.referencedResources
Write-Host $refResources



If you run that command and look at the returned properties and see an error, that means you do not have the correct permissions to move forward. You can check your permissions in the Power Platform admin center: https://admin.powerplatform.microsoft.com/

/end of update

Think about it: someone in your company creates a Flow that runs when a SharePoint item is updated. Fast forward a year or so, and that coworker has moved on, and the Flow needs to be updated. If you work for a small company or one that hasn’t fallen in love with Power Platform and Flow, you’re likely in luck, and finding the Flow will take a few minutes. In my case, there are currently 2,712 Flows in my tenant that span several environments.

The PowerShell script I’ve created will query a tenant using the Get-AdminFlow command, return all Flows, and then loop through them. The script can be adjusted to target a single environment using the EnvironmentName parameter. Note: running the script using the Get-Flow action will return all the Flows your AD account can access.

#Install-Module AzureAD
#Install-Module -Name Microsoft.PowerApps.Administration.PowerShell
#Install-Module -Name Microsoft.PowerApps.PowerShell -AllowClobber

#connect-AzureAD

function Get-UserFromId($id) {
    try {
        $usr = Get-AzureADUser -ObjectId $id
        return $usr.displayName
    }
    catch {
        return $null
    }
}

#get all flows in the tenant
$adminFlows = Get-AdminFlow

#set path for output
$Path = "$([Environment]::GetFolderPath('Desktop'))\Flow_Search_for_SharePoint_$(Get-Date -Format "yyyyMMdd_HHmmss").csv"

#set target site
$targetSPSite = "https://yourTenant.sharepoint.com/sites/yourSITE"
$targetSPList = "4f4604d2-fa8f-4bae-850f-4908b4708b07"
$targetSites = @()

foreach ($gFlow in $adminFlows) {

    #check if the flow references the target site
    $refResources = $gFlow.Internal.properties.referencedResources | Where-Object { $_.resource.site -eq $targetSPSite }

    #check if the flow references the target list
    #$refResources = $gFlow.Internal.properties.referencedResources | Where-Object { $_.resource.list -eq $targetSPList }

    if ($refResources -ne $null) {

        #optional - get the user who created the Flow
        $createdBy = Get-UserFromId($gFlow.internal.properties.creator.userId)

        $row = @{}
        $row.Add("EnvironmentName", $gFlow.EnvironmentName)
        $row.Add("Name", $gFlow.DisplayName)
        $row.Add("FlowEnabled", $gFlow.Enabled)
        $row.Add("FlowGUID", $gFlow.FlowName)
        $row.Add("CreatedByUser", $createdBy)
        $row.Add("CreatedDate", $gFlow.CreatedTime)
        $row.Add("LastModifiedDate", $gFlow.lastModifiedTime)

        $targetSites += $(new-object psobject -Property $row)
    }
}

#output to csv
$targetSites | Export-Csv -Path $Path -NoTypeInformation

If you don’t want to get the display name of the user who created the Flow, comment out the part of the script that calls the Get-UserFromId function, and you won’t need to connect to Azure.

And to answer my original question: How do you find all the Flows running on or referencing a SharePoint list?
In the script, comment out the part of the script that references $targetSPSite and un-comment $targetSPList. You can get the GUID of the list by navigating to list settings and looking at the URL. Another option is to open the list, view the Page Source, then look for the “listId” property.

In a future post(s), I will outline how to search for all Flows that use different connectors, Dynamics 365 tables (dataverse), triggered from Power Apps, or other objects. All of the info is in the properties of the Flow; getting to it can be a little fun.

How Do You Get a Power Page Attachment That’s Stored in Blob Storage

My Power App Portal (Power Pages) environments are configured to use Azure blob storage for form attachments. One of the primary reasons for doing this is to avoid filling up expensive dataverse storage with endless attachments submitted by enduers.

This article outlines how to set up Azure storage: link

What I’m going to demo is how to get ONE attachment that’s uploaded to a form. If your form allows multiple attachments, you’d simply loop through them.

In the example, I’m using the soon-to-be-obsolete dataverse connector, but the same basic flow design applies to the normal connector.

When a row is added to my table, the flow is triggered.
The flow then queries the Note (annotation) table using the ID from the source table.
filter query: (_objetid_value eq souce_table_id)

The list rows notes query will result in an array being returned, but I’m only dealing with one attachment, so there’s no need to loop through it. To avoid an unnecessary loop, a function can be used to target a single object from the array: first(body(‘List_rows_Notes’)?[‘value’])?[‘annotationid’]

From the Get row note action, annotationid and filename will be needed to help form the path to the blob. Using the concat function I’m combing the container name, annotationid, and filename. Also, note the transformation on annotationid, the hyphens need to be removed, and the string needs to be lowercase. The last part of the transformation is to remove .azure.txt from the filename.

concat('/blobcontainer/',toLower(replace(outputs('Get_row_Note')?['body/annotationid'], '-', '')),'/', split(outputs('Get_row_Note')?['body/filename'], '.azure.txt')[0])

The end result of the transformation will be:
/blobcontainer/annotationid/filename /blobcontainer/cf03e4cf7f72ad118561002248881923/example.pdf

With the path to the blob formed, the get blob content action can retrieve the file.

It’s that simple.

A couple of notes:
It would be wise to leverage a virus-scanning tool like Cloudmersive.
If you haven’t already noticed, when a user uploads a file that contains special characters in the name…it’s saved to the Note table without the special characters, but when it’s moved to blob storage, the characters will be in the name. Yes, that’s a bug Microsoft has yet to fix. You can avoid this by adding Javascript to the upload page to block files that fall into this category. OR. Write another flow to clean file names before the form is processed.
Example:
Uploaded filename: my report 1:2:3.pdf
Note table: my report 123.pdf
Blob: my report 1:2:3.pdf

Password Complexity Page using Azure B2C and Power Pages

Currently working on a project, and my UX team asked if it was possible to change the look of the B2C sign-up / password change page to include visual hints to meet the password complexity requirements. We’ve all seen it before, you visit a site where you need to sign up, and the password needs to be X characters long and contain this and that, but some sites include a cute visual to help identify what requirements have been met.

image borrowed from jQuery Script


Articles and blog posts I used to get this working:
1. Customize the Azure AD B2C user interface for portals
2. Enable JavaScript and page layout versions in Azure Active Directory B2C
3. JS Password Validation
4. Customize the look and feel of your Azure AD B2C page

If you read the B2C documentation, it’s strongly noted not to use JS libraries outside of the libraries native to B2C. I opted to keep my solution as simple as possible to avoid additional security gaps.

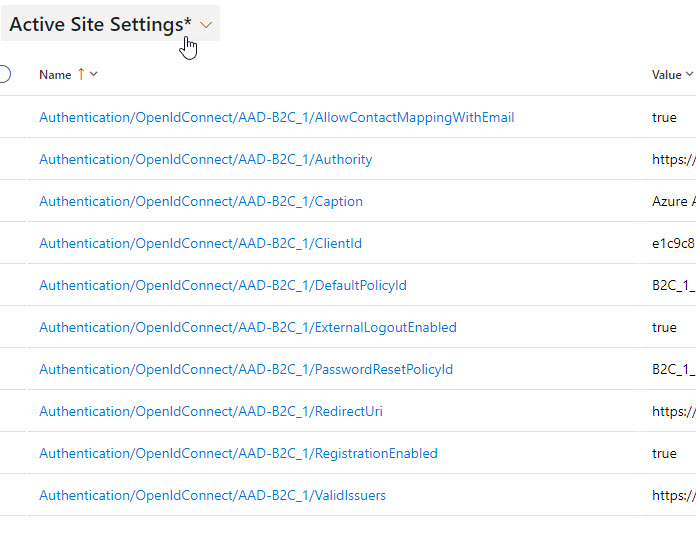

To get this working, I followed the steps outlined in link 1. There I created all of the needed assets in the Portal Management section of the Power Pages environment. Next, I used the content from link 3 to update the Web Template that I created in the previous step. After that, I updated the Web Template to include the div noted in link 4; this is extremely important and can’t be skipped. The last part of the process is to update the B2C user flow policy to reference the page created in step 1.

Here is a copy of my Web Template file from Portal Management.

<!DOCTYPE html>
<html>
<head>
<style>
      /* Style all input fields */
      input {
        width: 100%;
        padding: 12px;
        border: 1px solid #ccc;
        border-radius: 4px;
        box-sizing: border-box;
        margin-top: 6px;
        margin-bottom: 16px;
      }

      /* Style the submit button */
      input[type="submit"] {
        background-color: #04aa6d;
        color: white;
      }

      /* Style the container for inputs */
      .container {
        background-color: #f1f1f1;
        padding: 20px;
      }

      /* The message box is shown when the user clicks on the password field */
      #message {
        display: none;
        background: #f1f1f1;
        color: #000;
        position: relative;
        padding: 20px;
        margin-top: 10px;
      }

      #message p {
        padding: 10px 35px;
        font-size: 18px;
      }

      /* Add a green text color and a checkmark when the requirements are right */
      .valid {
        color: green;
      }

      .valid:before {
        position: relative;
        left: -35px;
        content: "✔";
      }

      /* Add a red text color and an "x" when the requirements are wrong */
      .invalid {
        color: red;
      }

      .invalid:before {
        position: relative;
        left: -35px;
        content: "✖";
      }
    </style>
</head>
<body>
 <!--this div is the most important part of the process-->
   <div id="api"></div>
    <div id="message">
      <h3>Password must contain the following:</h3>
      <p id="letter" class="invalid">A <b>lowercase</b> letter</p>
      <p id="capital" class="invalid">A <b>capital (uppercase)</b> letter</p>
      <p id="number" class="invalid">A <b>number</b></p>
      <p id="length" class="invalid">Minimum <b>8 characters</b></p>
    </div>

    <script>
      var myInput = document.getElementById("password");
      var letter = document.getElementById("letter");
      var capital = document.getElementById("capital");
      var number = document.getElementById("number");
      var length = document.getElementById("length");

      // When the user clicks on the password field, show the message box
      myInput.onfocus = function () {
        document.getElementById("message").style.display = "block";
      };

      // When the user clicks outside of the password field, hide the message box
      myInput.onblur = function () {
        document.getElementById("message").style.display = "none";
      };

      // When the user starts to type something inside the password field
      myInput.onkeyup = function () {
        // Validate lowercase letters
        var lowerCaseLetters = /[a-z]/g;
        if (myInput.value.match(lowerCaseLetters)) {
          letter.classList.remove("invalid");
          letter.classList.add("valid");
        } else {
          letter.classList.remove("valid");
          letter.classList.add("invalid");
        }

        // Validate capital letters
        var upperCaseLetters = /[A-Z]/g;
        if (myInput.value.match(upperCaseLetters)) {
          capital.classList.remove("invalid");
          capital.classList.add("valid");
        } else {
          capital.classList.remove("valid");
          capital.classList.add("invalid");
        }

        // Validate numbers
        var numbers = /[0-9]/g;
        if (myInput.value.match(numbers)) {
          number.classList.remove("invalid");
          number.classList.add("valid");
        } else {
          number.classList.remove("valid");
          number.classList.add("invalid");
        }

        // Validate length
        if (myInput.value.length >= 8) {
          length.classList.remove("invalid");
          length.classList.add("valid");
        } else {
          length.classList.remove("valid");
          length.classList.add("invalid");
        }
      };
</script>
</body>
</html>

The idea behind this was to keep it as simple as possible and to get a basic example created. Yes, you can store the file in blob storage, but I wanted to keep all portal parts close together and avoid added complexity. (not that creating this page in Portal Management was easy)

Azure Runbook Job Name error: Token request failed..Exception

When you move from a SharePoint on-prem environment to SharePoint Online, you lose the server-side environment you’d normally use to run PowerShell scripts or tasks to interact with SharePoint. In my opinion, and please correct me if I’m wrong, the closest thing to a server-side environment in a cloud environment is Azure Runbooks or Azure Function Apps. I went with Azure Runbooks due to its ability to handle long-running tasks.

The error I recently encountered in my runbook was: runbook name error: Token request failed..Exception . At first, I thought there might be something wrong with the way I was connecting to Keyvault, but that wasn’t it. Next was my connection to SharePoint, this is handled using a SharePoint-generated client ID and secret. Oddly enough, I had just updated this a few months back, so it wasn’t an obvious candidate for a failure point.

I went to my target SharePoint site, created a new set of credentials using siteName/_layouts/15/AppRegNew.aspx and siteName/_layouts/15/appinv.aspx. After creating the credentials, I went back to the runbook and plugged them in, and it worked!

Long story short, if you get this error: Token request failed..Exception try creating a new client ID and secret and see if it helps clear things up.

You can also use this script to test your client id and secret. Connect-PnPOnline | PnP PowerShell

$siteUrl = "https://taco.sharepointonline/sites/burrito"
$testConn = Connect-PnPOnline -Url $siteUrl -AppId "1111-2222-3333-4444-555555555555" -AppSecret "X3tssvCebdl/c/gvXsTACOajvBurrito=" -ReturnConnection
$list = Get-PnPList "Tacos"
Write-Output $list

Power App Portal and Azure B2C

This post is a mental brain dump of the issues I encountered when configuring Azure B2C in a new Power App Portal or Power Pages environment.

Error when trying to login via B2C:
.powerappsportals.com/signin-aad-b2c_1
Page not found
Open the Site Settings, filter the page to only display settings for the Website you are working with, then search for: authentication/openidconnect/

You will see all of the items related to the B2C items you set up on the front end. I’ve noticed, for whatever reason, that the settings don’t always sync with the backend.

To fix the Page not found error I switched Authentication/OpenIdConnect/AAD-B2C_1/RegistrationEnabled to true . Open the portal in a new private browser and try logging in again.

Power App Portal authentication settings not syncing.
If you create a new B2C user flow and want to update your portal settings, save yourself time and open your portal site settings, search for authentication/openidconnect/ and update the setting there. For some reason, updating portal settings in the settings page don’t always sync to the backend.


Failed to create/update site setting for default provider.
If you get this error, try setting a different provider as the default, then try your original selection again.

If you log in via B2C and see this, check the setting in the screenshot, and purge your cache.
Registration is disabled
Invalid sign-in attempt.
