Effortlessly Trigger a Flow from a Power App: A Simple Step-by-Step Example

In this post, I want to show how easy it is to call a Flow from a Power App. The goal of the Power App is to pass values to the Flow, have it add them together, and return a result.

Starting from the Power Apps portal
click Create –> Blank app, Black canvas app, name the app, for the format option, select tablet, then click Create button.

Power App overview:

Field TypeField NameOption
Text InputTextInputOneFormat: Number
Text InputTextInputTwoFormat: Number
LabelLabelNumberOne
LabelLabelNumberTwo
LabelLabelTotal
LabelLabelMathResult
ButtonButtonCalc

Flow overview:
The Flow can be created directly in the Power App designer or the Power Platform portal. For this example, I’m going to use the portal.

From https://make.powerapps.com,
Click on New flow and select Automated cloud flow

Click the Skip button at the bottom of the window (this will make sense in a min.)

With the Flow designer open, click PowerApps or search for it, then click on PowerApps (V2)

In this step, add two number inputs to the action

I named my number inputs as follow: inputNumberOne and inputNumberTwo

The Flow will respond to the app using the Repost to a PowerApp or flow action. For the output, again select number, and I named mine outputNumber .

the formula should be: add(triggerBody()[‘number’],triggerBody()[‘number_1’])

Name the Flow as Flow do Math, and save it. You can test the Flow simply by clicking the Test button and supplying two input values. The Flow can be named something different, but this name aligns with the below example.

Back in the PowerApp, click the Power Automate icon.

With the Power Automate window open, click on Add flow and select the newly created Flow, or search for it and select it.

On the app design surface, select the button and update its OnSelect property to:
Set(varNumber, FlowDoMath.Run(TextInputOne.Text,TextInputTwo.Text).outputnumber)

Select the LabelMathResult field and set its Text value to varNumber

Run the app, input values in the text fields, then click the button.

What just happened?


The values of the two text input fields were passed to the Flow, it added them together and returned the value in the outputnumber field; that value was then set to the varNumber variable.

In future posts, I will dive deeper into more complex examples.



How do you find ALL the Flows that reference a SharePoint site or list?

I asked this question when I first started down the path of learning about Flow:
How do you find all the Flows running on or referencing a SharePoint list?

UPDATE / EDIT – READ THIS Part
Before you start on this, please ensure that your account or the account you are using to run the script has sufficient permissions to the target environment(s).

$oneFlow = Get-AdminFlow -FlowName "00000-ae95-4cab-96d8-0000000" -EnvironmentName "222222-4943-4068-8a2d-11111111"

$refResources = $oneFlow.Internal.properties.referencedResources
Write-Host $refResources



If you run that command and look at the returned properties and see an error, that means you do not have the correct permissions to move forward. You can check your permissions in the Power Platform admin center: https://admin.powerplatform.microsoft.com/

/end of update

Think about it: someone in your company creates a Flow that runs when a SharePoint item is updated. Fast forward a year or so, and that coworker has moved on, and the Flow needs to be updated. If you work for a small company or one that hasn’t fallen in love with Power Platform and Flow, you’re likely in luck, and finding the Flow will take a few minutes. In my case, there are currently 2,712 Flows in my tenant that span several environments.

The PowerShell script I’ve created will query a tenant using the Get-AdminFlow command, return all Flows, and then loop through them. The script can be adjusted to target a single environment using the EnvironmentName parameter. Note: running the script using the Get-Flow action will return all the Flows your AD account can access.

#Install-Module AzureAD
#Install-Module -Name Microsoft.PowerApps.Administration.PowerShell
#Install-Module -Name Microsoft.PowerApps.PowerShell -AllowClobber

#connect-AzureAD

function Get-UserFromId($id) {
    try {
        $usr = Get-AzureADUser -ObjectId $id
        return $usr.displayName
    }
    catch {
        return $null
    }
}

#get all flows in the tenant
$adminFlows = Get-AdminFlow

#set path for output
$Path = "$([Environment]::GetFolderPath('Desktop'))\Flow_Search_for_SharePoint_$(Get-Date -Format "yyyyMMdd_HHmmss").csv"

#set target site
$targetSPSite = "https://yourTenant.sharepoint.com/sites/yourSITE"
$targetSPList = "4f4604d2-fa8f-4bae-850f-4908b4708b07"
$targetSites = @()

foreach ($gFlow in $adminFlows) {

    #check if the flow references the target site
    $refResources = $gFlow.Internal.properties.referencedResources | Where-Object { $_.resource.site -eq $targetSPSite }

    #check if the flow references the target list
    #$refResources = $gFlow.Internal.properties.referencedResources | Where-Object { $_.resource.list -eq $targetSPList }

    if ($refResources -ne $null) {

        #optional - get the user who created the Flow
        $createdBy = Get-UserFromId($gFlow.internal.properties.creator.userId)

        $row = @{}
        $row.Add("EnvironmentName", $gFlow.EnvironmentName)
        $row.Add("Name", $gFlow.DisplayName)
        $row.Add("FlowEnabled", $gFlow.Enabled)
        $row.Add("FlowGUID", $gFlow.FlowName)
        $row.Add("CreatedByUser", $createdBy)
        $row.Add("CreatedDate", $gFlow.CreatedTime)
        $row.Add("LastModifiedDate", $gFlow.lastModifiedTime)

        $targetSites += $(new-object psobject -Property $row)
    }
}

#output to csv
$targetSites | Export-Csv -Path $Path -NoTypeInformation

If you don’t want to get the display name of the user who created the Flow, comment out the part of the script that calls the Get-UserFromId function, and you won’t need to connect to Azure.

And to answer my original question: How do you find all the Flows running on or referencing a SharePoint list?
In the script, comment out the part of the script that references $targetSPSite and un-comment $targetSPList. You can get the GUID of the list by navigating to list settings and looking at the URL. Another option is to open the list, view the Page Source, then look for the “listId” property.

In a future post(s), I will outline how to search for all Flows that use different connectors, Dynamics 365 tables (dataverse), triggered from Power Apps, or other objects. All of the info is in the properties of the Flow; getting to it can be a little fun.

Power App and SharePoint List Form Hide Field on New Item Form

How do you hide a field on a PowerApp when opening a new form? The approach below uses a single screen form instead of multiple screens for the various forms.

I started by creating a new SharePoint list and added two text fields:
Not on New Form
On New Form
Using the customize form option, I entered the Power App designer.

When the PowerApp designer opens, it will look like this:

To help see what’s going on with the form mode, add a text label to the form and set its Text property to: "Form Mode: " & Text(SharePointForm1.Mode)

Select the field (Data Card) that should not appear on the new item form, then select the Visible property. For the Visible property, enter the following: If(SharePointForm1.Mode = 1, false, true) . If your SharePointForm1 is named something else, use it instead of the value I presented.

Breaking down the formula a little: If the SharePoint form mode is equal to 1, visible should be false, else true.

Save and publish the app, then check if it’s functional as planned.

New item form with Form Mode: 1

Display item form with Form Mode: 2

Edit item form with Form Mode: 0

How Do You Get a Power Page Attachment That’s Stored in Blob Storage

My Power App Portal (Power Pages) environments are configured to use Azure blob storage for form attachments. One of the primary reasons for doing this is to avoid filling up expensive dataverse storage with endless attachments submitted by enduers.

This article outlines how to set up Azure storage: link

What I’m going to demo is how to get ONE attachment that’s uploaded to a form. If your form allows multiple attachments, you’d simply loop through them.

In the example, I’m using the soon-to-be-obsolete dataverse connector, but the same basic flow design applies to the normal connector.

When a row is added to my table, the flow is triggered.
The flow then queries the Note (annotation) table using the ID from the source table.
filter query: (_objetid_value eq souce_table_id)

The list rows notes query will result in an array being returned, but I’m only dealing with one attachment, so there’s no need to loop through it. To avoid an unnecessary loop, a function can be used to target a single object from the array: first(body(‘List_rows_Notes’)?[‘value’])?[‘annotationid’]

From the Get row note action, annotationid and filename will be needed to help form the path to the blob. Using the concat function I’m combing the container name, annotationid, and filename. Also, note the transformation on annotationid, the hyphens need to be removed, and the string needs to be lowercase. The last part of the transformation is to remove .azure.txt from the filename.

concat('/blobcontainer/',toLower(replace(outputs('Get_row_Note')?['body/annotationid'], '-', '')),'/', split(outputs('Get_row_Note')?['body/filename'], '.azure.txt')[0])

The end result of the transformation will be:
/blobcontainer/annotationid/filename /blobcontainer/cf03e4cf7f72ad118561002248881923/example.pdf

With the path to the blob formed, the get blob content action can retrieve the file.

It’s that simple.

A couple of notes:
It would be wise to leverage a virus-scanning tool like Cloudmersive.
If you haven’t already noticed, when a user uploads a file that contains special characters in the name…it’s saved to the Note table without the special characters, but when it’s moved to blob storage, the characters will be in the name. Yes, that’s a bug Microsoft has yet to fix. You can avoid this by adding Javascript to the upload page to block files that fall into this category. OR. Write another flow to clean file names before the form is processed.
Example:
Uploaded filename: my report 1:2:3.pdf
Note table: my report 123.pdf
Blob: my report 1:2:3.pdf

Azure Runbook Job Name error: Token request failed..Exception

When you move from a SharePoint on-prem environment to SharePoint Online, you lose the server-side environment you’d normally use to run PowerShell scripts or tasks to interact with SharePoint. In my opinion, and please correct me if I’m wrong, the closest thing to a server-side environment in a cloud environment is Azure Runbooks or Azure Function Apps. I went with Azure Runbooks due to its ability to handle long-running tasks.

The error I recently encountered in my runbook was: runbook name error: Token request failed..Exception . At first, I thought there might be something wrong with the way I was connecting to Keyvault, but that wasn’t it. Next was my connection to SharePoint, this is handled using a SharePoint-generated client ID and secret. Oddly enough, I had just updated this a few months back, so it wasn’t an obvious candidate for a failure point.

I went to my target SharePoint site, created a new set of credentials using siteName/_layouts/15/AppRegNew.aspx and siteName/_layouts/15/appinv.aspx. After creating the credentials, I went back to the runbook and plugged them in, and it worked!

Long story short, if you get this error: Token request failed..Exception try creating a new client ID and secret and see if it helps clear things up.

You can also use this script to test your client id and secret. Connect-PnPOnline | PnP PowerShell

$siteUrl = "https://taco.sharepointonline/sites/burrito"
$testConn = Connect-PnPOnline -Url $siteUrl -AppId "1111-2222-3333-4444-555555555555" -AppSecret "X3tssvCebdl/c/gvXsTACOajvBurrito=" -ReturnConnection
$list = Get-PnPList "Tacos"
Write-Output $list

Create Approvals That NEVER Expire

If you are reading this, you likely ran into an issue where you created an approval flow, but it expired before the recipient had time to approve or reject it. The timeout for an approval or any flow is thirty days; then, it stops running. Yes, there are some clever workaround to alert if the flow times out, but who wants to mess with that?

The approach I took to solve this was to leverage some of the existing tooling, then add to them. When you create an approval, a row is created in the dataverse Approval table. As we all know, a flow is trigger-based, so why not create one that simply monitors the Approval table, then handles things from there?

At a high level, here is the basic approach.

Start by creating a simple flow that initiates an approval, then run it. In my example, note the value in the Item Link field; this will come into play later.

Next, navigate to make.powerapps.com, expand the Dataverse section, and click on Tables. After the page loads, click the All link under Tables, then search for approval. If you search for approval and do not get a result, make sure you click the All link.



Open the Approval table; in it, you will see your approval, possibly more depending on how old your environment is or if many people in your company are using approvals. When looking at the data, the takeaway is what is stored in the table and what can be used in the flow that handles the outcome of the approval. In my case, using the Item Link field is key to handling the approval response. With it, I can filter the value and know if I need to take action on the item or not.

When creating the flow that responds to the approval, you can filter it at the design level or in the trigger settings. I went with the trigger setting due to the number of approvals that could be firing across my organization in our default tenant. Why do you need to filter it? Just assume other approvals might be writing to the same dataverse table.

Trigger Conditions

@contains(triggerBody()?['msdyn_flow_approval_itemlink'],'https://www.sharepointed.com/stuff/')

@not(equals(triggerBody()?['msdyn_flow_approval_result'], null))

The above conditions filter the value I passed in the create approval flow (Item Link) and if the item has been approved or rejected.

Here is an overview of the flow that handles the outcome of the approval. I mixed dataverse connector types due to an issue with the trigger condition not working with the green dataverse connector. In the Expand Query field, I used the Fetch XML builder to query over to the Approval Response table to get the comment field; not used in the example, but nonetheless, it’s there. From the Get a row by ID action, the response of the approval is available to use to handle the outcome (Result) of the approval.

To my knowledge, there is no reason why you can’t create an approval that is active for months, if not years.

Notes:
1) You can access and review the approval records using PowerBI, Flow, Access, ___
2) You can bulks update the records using PowerShell, Flow, Access (be real careful), __
3) You can pass items in the Details field, then parse them out when handling the approval. Here is one simple example where I’m passing a SharePoint item ID from the approval and parsing it in the response flow:



Response flow compose statement that parses the Details field.

Expression: last(split(triggerBody()?['msdyn_flow_approval_details'],'**SPItemID:** '))




YES, this is a lot, but the general idea is simple; create an approval and handle the response.

Create Dynamic Hyperlinks And Send An Email Action

Over the years, some updates to Flow have been better than others, and others, not so much. If memory serves, the send an email action would use dynamic hyperlinks without much work, but something went sideways with one of the updates causing dynamic hyperlinks not to work as you’d want.

Here is a basic example of including a hyperlink in an outgoing email; further down the page, I’ll provide a more realistitc example.


In this example, I setup the Flow to trigger when an item is added to a SharePoint library. The key thing to note in this example is the value of the varHyerplink variable; note the double quotes around the link to item.

Use Power Automate to Update a SharePoint Person Field

Using the SharePoint HTTP flow action to update a person or group field, I kept getting this error:

A 'PrimitiveValue' node with non-null value was found when trying to read the value of a navigation property; however, a 'StartArray' node, a 'StartObject' node, or a 'PrimitiveValue' node with null value was expected.

The field I was attempting to update is named Submitted By, with an internal name of Submitted_x0020_By. Each time I tried to update the field I was seeing the error noted above. It wasn’t until I looked at one of my previous flow runs did I notice what the issue was. It turns out, that the field name I should be using is Submitted_x0020_ById.



Update flow:

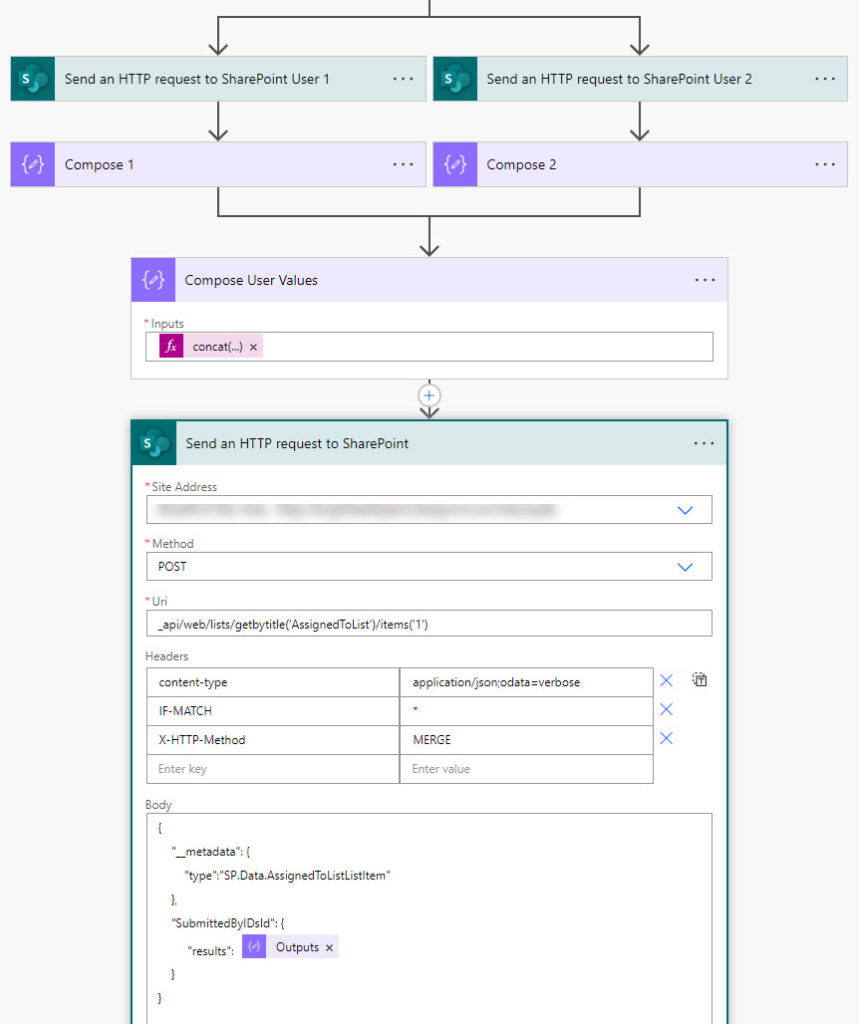

How do you update a Person field if the field allows for multiple selections? The example below will update the field with two different user values, but clearly, this could be extended to be more dynamic.

body('Send_an_HTTP_request_to_SharePoint_User_1')?['d']?['Id']
body('Send_an_HTTP_request_to_SharePoint_User_2')?['d']?['Id']

concat('[',outputs('Compose_1'),',',outputs('Compose_2'),']
{
    "__metadata": {
        "type":"SP.Data.AssignedToListListItem"
    },
    "SubmittedByIDsId": {
         "results": [
                 6,
                 54
          ]
    }
}

Flow and SharePoint Online Large Libraries

Using Flow to get or check for files in a large SharePoint library can be a little tricky. If you are sure your library will always stay under 5,000 items the Get Files (properties only) Flow action is a quick n’ simple approach to use. When your library crosses over the mythical 5k mark or somewhere in that neighborhood, the Get Files action will fail to return results without warning. What I’m outlining below are other options when working with large libraries.

Setup:

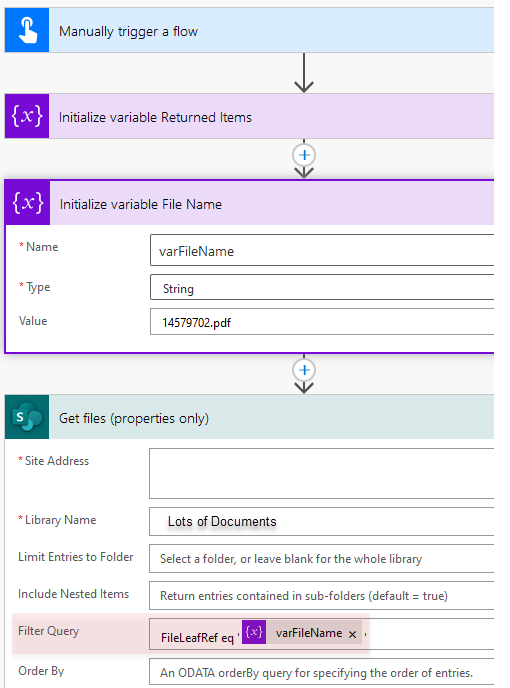

Option 1: Get Files using an Odata filter query
downside: only use this in small libraries

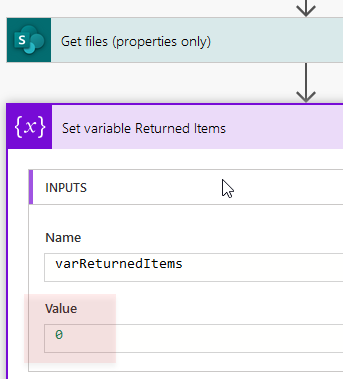

Result:

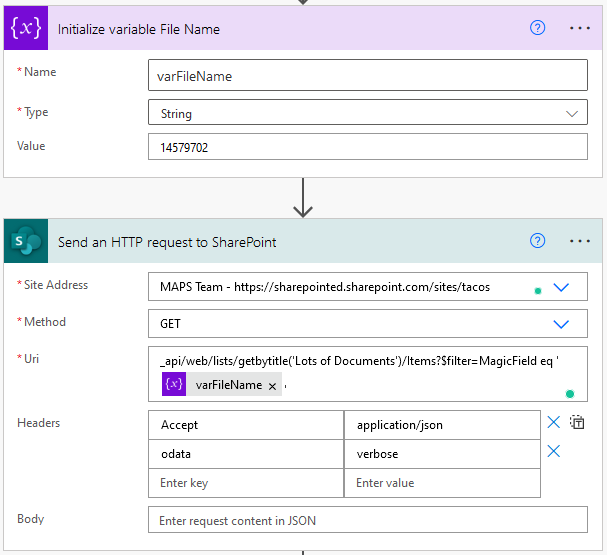

Option 2: use the SharePoint API
downside: the lack of transparency from Microsoft related to how often data is crawled.

Result:

Option 3: use the SharePoint API along with a filter action on the library. This option does require that you have metadata set up on the library to filter on and there is not a wildcard / contains option. The filtered value needs to be exact.
downside: you will need to set up your metadata ahead of time or create it after the fact then backfill.

Result:

The more I learn about Flow and SharePoint Online, the more I’m starting to like Option 3 when doing a lookup type of search. SharePoint Search is an extremely powerful tool if the search index is fresh.

Download a File From SharePoint Online Using Python

How do you download a file from a SharePoint Online library using Python?

Update – If you scroll to the bottom, I’ve outlined another approach that uses a username and password to connect via the SharePlum library.

Items needed to run the script in this example:
Office365 Rest Python Client library:
https://pypi.org/project/Office365-REST-Python-Client/
SharePoint App Only Client Id and Secret:
Microsoft documentation:
https://docs.microsoft.com/en-us/sharepoint/dev/solution-guidance/security-apponly-azureacs
You can create an app principle that is limited to a single site, list, library, or a combination of them:
https://piyushksingh.com/2018/12/26/register-app-in-sharepoint/

from office365.runtime.auth.authentication_context import AuthenticationContext
from office365.sharepoint.client_context import ClientContext
from office365.sharepoint.files.file import File

app_settings = {
    'url': 'https://YOURtenant.sharepoint.com/sites/somesite/',
    'client_id': '12344-abcd-efgh-1234-1a2d12a21a2121a',
    'client_secret': 'Oamytacohungry234343224534543=',
}

context_auth = AuthenticationContext(url=app_settings['url'])
context_auth.acquire_token_for_app(client_id=app_settings['client_id'], client_secret=app_settings['client_secret'])

ctx = ClientContext(app_settings['url'], context_auth)
web = ctx.web
ctx.load(web)
ctx.execute_query()

response = File.open_binary(ctx, "/Shared Documents/Invoice.pdf")
with open("./Invoice.pdf", "wb") as local_file:
    local_file.write(response.content)

If the above script does not work, step back and ensure you are connected to the site. The following script connects to a site and outputs its title. This is useful to validate that a site connection can be made.

from office365.runtime.auth.authentication_context import AuthenticationContext
from office365.sharepoint.client_context import ClientContext
from office365.sharepoint.files.file import File

app_settings = {
    'url': 'https://YOURtenant.sharepoint.com/sites/somesite/',
    'client_id': '12344-abcd-efgh-1234-1a2d12a21a2121a',
    'client_secret': 'Oamytacohungry234343224534543=',
}

context_auth = AuthenticationContext(url=app_settings['url'])
context_auth.acquire_token_for_app(client_id=app_settings['client_id'], client_secret=app_settings['client_secret'])

ctx = ClientContext(app_settings['url'], context_auth)
web = ctx.web
ctx.load(web)
ctx.execute_query()

print("Site title: {0}".format(web.properties['Title']))

SharePlum connection example using a username and password to connect to SharePoint Online. More details about SharePlum can be found here: https://github.com/jasonrollins/shareplum

from shareplum import Site
from shareplum import Office365

sharepoint_url = 'https://YOURtenant.sharepoint.com/sites/spdev'
username = 'You@YourDomain.com'
password = 'Password'

authcookie = Office365('https://YOURtenant.sharepoint.com',
                       username=username,
                       password=password).GetCookies()
site = Site('https://YOURtenant.sharepoint.com/sites/DEV/',
            authcookie=authcookie)
sp_list = site.List('Your List')
data = sp_list.GetListItems('All Items', row_limit=200)

If you get this error, you won’t be able to connect with a username and password, and you’ll need to use an App Password.

File “C:\Python311\Lib\site-packages\shareplum\office365.py”, line 80, in get_security_token
raise Exception(‘Error authenticating against Office 365. Error from Office 365:’, message[0].text)
Exception: (‘Error authenticating against Office 365. Error from Office 365:’, “AADSTS50076: Due to a configuration change made by your administrator, or because you moved
to a new location, you must use multi-factor authentication to access ”.”)

I’ve created this post to outline how to upload a large file to a SharePoint library:
https://www.sharepointed.com/2024/03/how-to-upload-a-large-file-to-sharepoint-using-the-microsoft-graph-api/
